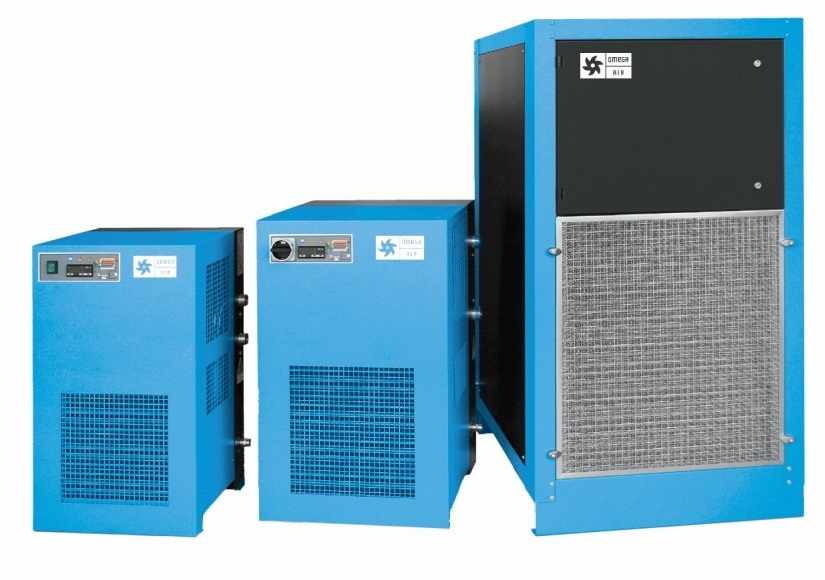

OHP compressed air dryers
OHP compressed air dryers (high pressure dryers for compressed air systems up to 50 barg) makes the most of manufacturing and functional advantages of brazed plate heat exchangers, which are more suitable for high pressure working conditions (on models OHP 90-3000). Main features are simple and ergonomic component layouts guarantee functionality and efficiency, excellent performance due to low pressure drop and constant pressure Dew Point, dryer design is very attractive both aesthetically with a two tone cabinet and practically with a robust casing.
Characteristics
| operating pressure | 50 (45) bar |
| inlet air tempeature range | 1,5 to 65 °C |
| pressure dew point | 3 °C |
| flow rate | 25 to 5010 Nm3/h |
| standard colour | RAL 5012 |
Applications
• high pressure compressed air systems
Technical data
Files
Gallery
