HPF series

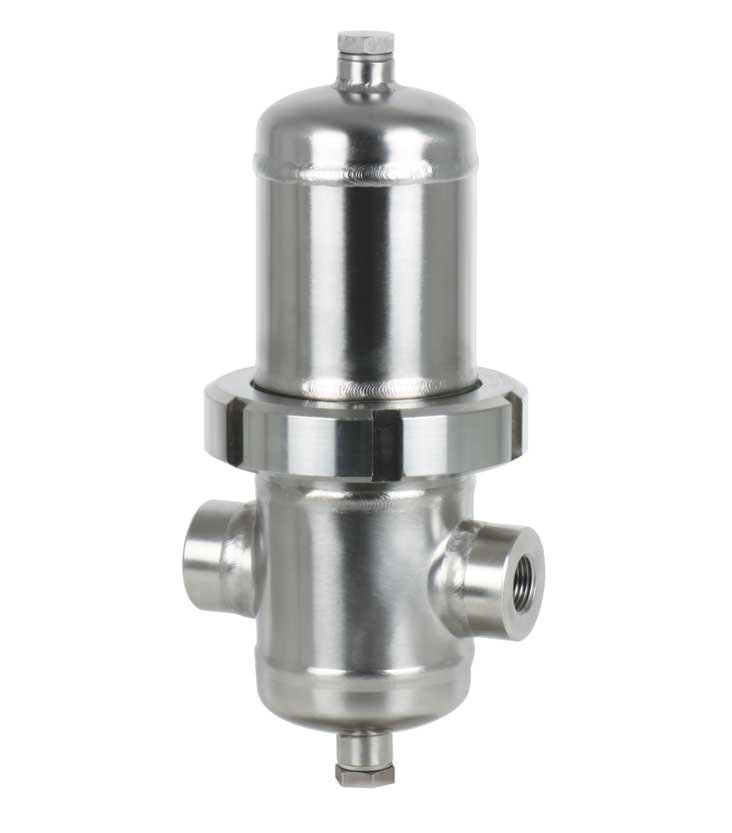

HPF process filters are designed for high pressure applications in process industry, where the risk for corrosion of compressed air system components is very high. Required compressed air quality according to standard ISO 8571-1 can be achieved with 9 different grades of filter elements. HPF process filter housing can be used in variety of applications. For applications not listed please contact producer or your local distributor. For oil removal, coalescing filter element must be installed and flow direction inside-out must be provided. General arrangement is bowl on the top and filter head on the bottom. Fluid group 1 on request.

Characteristics

operating pressure	50 bar
volume flow rate	150 to 2400 Nm3/h
connections	1/2’’ to 3’’
operating temp. range	up to 150 °C
material	stainless steel 1.4404



Applications

• packing industry
• biotechnology
• breweries
• chemical industry
• dairies
• fermentation processes
• food and beverage industry
• pharmaceutical industry
• hospitals



Technical data

Files

HPF_SERIES.pdf

Gallery
