HP-DRY series

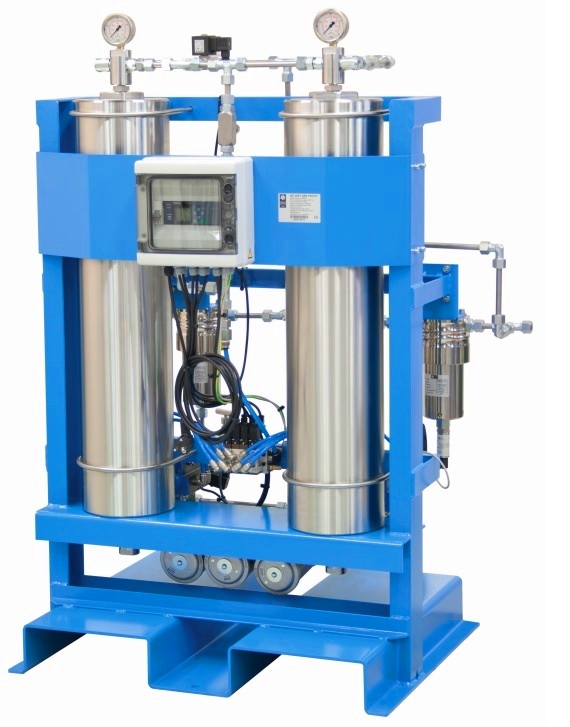

HP-DRY adsorption dryers have been designed for continuous separation of water vapourfrom compressed air thus reducing dew point. Operation of the dryer requires two columns operated alternately. Adsorption takes place under pressure in the first column while the second column regenerates with a portion of already dried compressed air at ambient pressure. Dryers consists from control valves, controller with LED display and two columns filled with desiccant. Springs in the columns make surethat the desiccant beads will not move during operation. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.

Characteristics

operating presure	50, 100, 250, 400 bar
operating temp. range	1,5 to 50 °C
pressure dew points	-40 °C
flow rate	50 to 1600 Nm3/h
standard colour	RAL 5012
