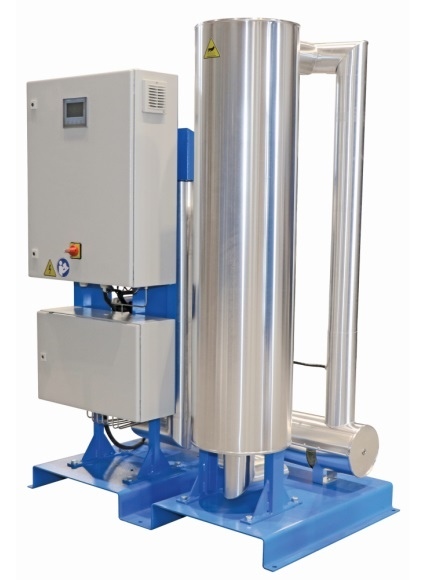

A-CAT series
A-CAT is designed for obtaining oil free compressed air from oil-contaminated air - according to standard ISO 8573-1. A-CAT converter guarantees oil free compressed air using catalyst material that ensures total degradation of oil. During the process of oil removal, clean water and CO2 is produced which are suitable for disposal with no additional processing. Higher oil concentrations does not affect catalyst durability and efficiency. A-CAT is installed on oillubricated compressor’s outlet pipe. Compressed air flows through a plate heat exchanger and pipe electric heater. Pre-heated compressed air than enters the converter vessel filled with catalyst material. At the bottom, oil free compressed air leaves the converter vessel and flows through the plate heat exchanger again, where itcools down with cold incoming compressed air. After the oil free air is cooled down, it can be used in further applications.
Characteristics
| operating presure |
4 to 11 bar |
| inlet air temperature range | 1,5 to 55 °C |
| connections | DN15 to DN100 |
| flow rate | 100 to 2500 Nm3/h |
Applications
• chemical industry
• automotive industry
• PET blowing
• breathing air
