Ultrafilter 90 Series Aluminium

Ultrafilter / Donaldson Compatible
Replacement Filter Elements — India

Complete replacement catalogue for Ultrafilter (Donaldson) 90 series aluminium filter housings. PE, FF, MF, SMF, AK — sizes 02/05 to 30/50. OEM equivalent, 30-50% lower cost.

5 Element Grades
75 Total SKUs
Delhi NCR Stock
PE — 3 µmFF — 0.1 µmMF — 0.01 µmSMF — 0.01 µmAK — Activated Carbon
Series: Donaldson '90 ALU
Pressure: Up to 16 bar
Standard: ISO 8573-1
Note: SB grade not stocked
PE
3 µm
General particulate filtration

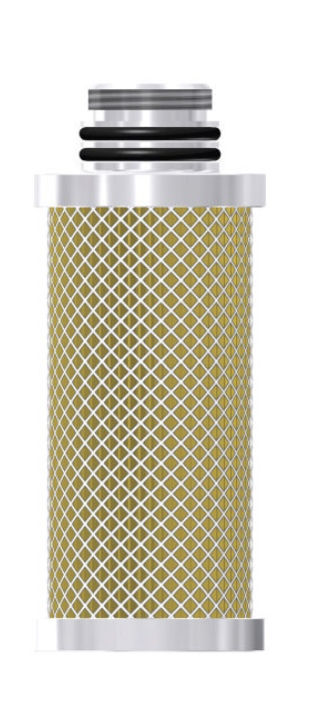

Ultrafilter PE particulate replacement filter element India — compatible Donaldson 90 ALU series
Ultrafilter (Donaldson) Omega Air Equivalent Code Action
PE 02/05ODO 0205 PE/P Al1010100103902Details
PE 02/10ODO 0210 PE/P Al1010100103908Details
PE 03/05ODO 0305 PE/P Al1010100103914Details
PE 03/10ODO 0310 PE/P Al1010100103920Details
PE 04/10ODO 0410 PE/P Al1010100103926Details
PE 04/20ODO 0420 PE/P Al1010100103932Details
PE 05/20ODO 0520 PE/P Al1010100103938Details
PE 05/25ODO 0525 PE/P Al1010100103944Details
PE 07/25ODO 0725 PE/P Al1010100103950Details
PE 07/30ODO 0730 PE/P Al1010100103956Details
PE 10/30ODO 1030 PE/P Al1010100103962Details
PE 15/30ODO 1530 PE/P Al1010100103968Details
PE 20/30ODO 2030 PE/P Al1010100103974Details
PE 30/30ODO 3030 PE/P Al1010100103980Details
PE 30/50ODO 3050 PE/P Al1010100103986Details
FF
0.1 µm
Coalescing — oil mist and water aerosols

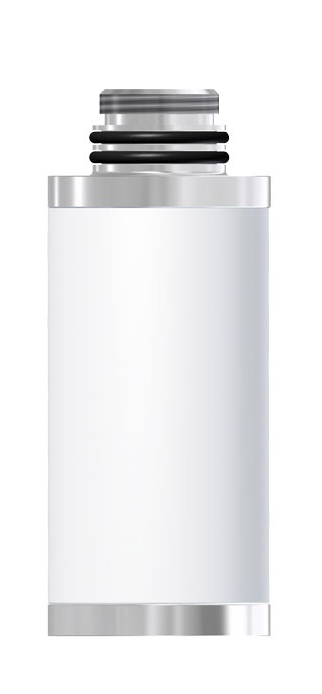

Ultrafilter FF coalescing replacement filter element India — compatible Donaldson alternative
Ultrafilter (Donaldson) Omega Air Equivalent Code Action
FF 02/05ODO 0205 XFF Al1010100103903Details
FF 02/10ODO 0210 XFF Al1010100103909Details
FF 03/05ODO 0305 XFF Al1010100103915Details
FF 03/10ODO 0310 XFF Al1010100103921Details
FF 04/10ODO 0410 XFF Al1010100103927Details
FF 04/20ODO 0420 XFF Al1010100103933Details
FF 05/20ODO 0520 XFF Al1010100103939Details
FF 05/25ODO 0525 XFF Al1010100103945Details
FF 07/25ODO 0725 XFF Al1010100103951Details
FF 07/30ODO 0730 XFF Al1010100103957Details
FF 10/30ODO 1030 XFF Al1010100103963Details
FF 15/30ODO 1530 XFF Al1010100103969Details
FF 20/30ODO 2030 XFF Al1010100103975Details
FF 30/30ODO 3030 XFF Al1010100103981Details
FF 30/50ODO 3050 XFF Al1010100103987Details
MF
0.01 µm
High-efficiency coalescing
Ultrafilter MF coalescing replacement filter element — compatible alternative India stock
Ultrafilter (Donaldson) Omega Air Equivalent Code Action
MF 02/05ODO 0205 XMF Al1010100103904Details
MF 02/10ODO 0210 XMF Al1010100103910Details
MF 03/05ODO 0305 XMF Al1010100103916Details
MF 03/10ODO 0310 XMF Al1010100103922Details
MF 04/10ODO 0410 XMF Al1010100103928Details
MF 04/20ODO 0420 XMF Al1010100103934Details
MF 05/20ODO 0520 XMF Al1010100103940Details
MF 05/25ODO 0525 XMF Al1010100103946Details
MF 07/25ODO 0725 XMF Al1010100103952Details
MF 07/30ODO 0730 XMF Al1010100103958Details
MF 10/30ODO 1030 XMF Al1010100103964Details
MF 15/30ODO 1530 XMF Al1010100103970Details
MF 20/30ODO 2030 XMF Al1010100103976Details
MF 30/30ODO 3030 XMF Al1010100103982Details
MF 30/50ODO 3050 XMF Al1010100103988Details
SMF
0.01 µm
Super high-efficiency coalescing
Ultrafilter SMF high-efficiency coalescing filter element replacement India
Ultrafilter (Donaldson) Omega Air Equivalent Code Action
SMF 02/05ODO 0205 XSMF Al1010100103905Details
SMF 02/10ODO 0210 XSMF Al1010100103911Details
SMF 03/05ODO 0305 XSMF Al1010100103917Details
SMF 03/10ODO 0310 XSMF Al1010100103923Details
SMF 04/10ODO 0410 XSMF Al1010100103929Details
SMF 04/20ODO 0420 XSMF Al1010100103935Details
SMF 05/20ODO 0520 XSMF Al1010100103941Details
SMF 05/25ODO 0525 XSMF Al1010100103947Details
SMF 07/25ODO 0725 XSMF Al1010100103953Details
SMF 07/30ODO 0730 XSMF Al1010100103959Details
SMF 10/30ODO 1030 XSMF Al1010100103965Details
SMF 15/30ODO 1530 XSMF Al1010100103971Details
SMF 20/30ODO 2030 XSMF Al1010100103977Details
SMF 30/30ODO 3030 XSMF Al1010100103983Details
SMF 30/50ODO 3050 XSMF Al1010100103989Details
AK
Activated Carbon
Oil vapour and odour removal

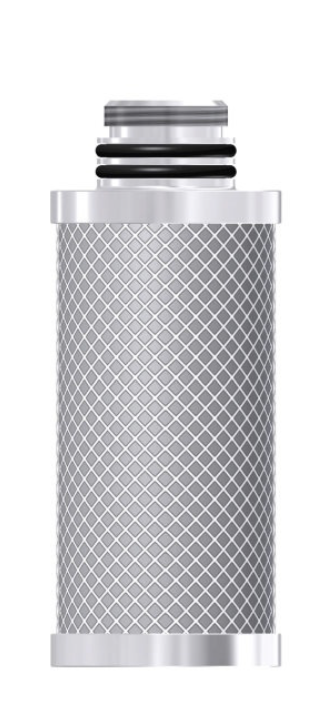

Ultrafilter AK activated carbon replacement filter element India — oil vapour removal
Ultrafilter (Donaldson) Omega Air Equivalent Code Action
AK 02/05ODO 0205 AK/A Al1010100103906Details
AK 02/10ODO 0210 AK/A Al1010100103912Details
AK 03/05ODO 0305 AK/A Al1010100103918Details
AK 03/10ODO 0310 AK/A Al1010100103924Details
AK 04/10ODO 0410 AK/A Al1010100103930Details
AK 04/20ODO 0420 AK/A Al1010100103936Details
AK 05/20ODO 0520 AK/A Al1010100103942Details
AK 05/25ODO 0525 AK/A Al1010100103948Details
AK 07/25ODO 0725 AK/A Al1010100103954Details
AK 07/30ODO 0730 AK/A Al1010100103960Details
AK 10/30ODO 1030 AK/A Al1010100103966Details
AK 15/30ODO 1530 AK/A Al1010100103972Details
AK 20/30ODO 2030 AK/A Al1010100103978Details
AK 30/30ODO 3030 AK/A Al1010100103984Details
AK 30/50ODO 3050 AK/A Al1010100103990Details
Can't find your part number?

Need an Ultrafilter replacement? Confirm stock & pricing in 4 hours

💬 WhatsApp 📞 +91-9810070303 View All Brands →
Element Selection Guide

Ultrafilter / Donaldson Grade Cross-Reference

The Ultrafilter 90 ALU series (now Donaldson) uses five element grades across a standard compressed air filtration train. Each replacement element below is a direct drop-in for the corresponding Ultrafilter grade.

Ultrafilter Grade Type Filtration ISO 8573-1 Typical Use
PEParticulate / pre-filter3 µm solid particlesClass 3 (particle)Bulk dust & particulate removal, Stage 1
FFCoalescing1 µm oil mistClass 2 (oil)General coalescing after dryer
MFFine coalescing0.1 µmClass 1 (oil)Food, pharma, automotive painting
SMFHigh-efficiency coalescing0.01 µmClass 1 (oil)Electronics, pharma, critical apps
AKActivated carbonOil vapour, odoursClass 1 (vapour)Food contact, breathing air, odour-sensitive processes
Why Choose Nitrogenium

Compatible Ultrafilter Elements — India's Trusted Supplier

🔄
Direct Drop-In Fit
Same external dimensions as OEM Ultrafilter / Donaldson elements. Fits all 90 ALU series housings without modification.
💰
30–50% Cost Saving
Significant maintenance budget savings — particularly valuable for facilities running large banks of Ultrafilter housings.
📦
All 5 Grades In Stock
PE, FF, MF, SMF and AK all held at our Delhi facility. Single-invoice supply for multi-grade annual maintenance orders.
🚚
Pan-India Delivery
Same-day dispatch (orders before 2 PM). Delivery in 3–5 days to Mumbai, Pune, Chennai, Bengaluru, Hyderabad, Ahmedabad and all major cities.
Frequently Asked Questions

Ultrafilter Replacement Filter Elements — FAQ

Are your elements compatible with Donaldson Ultrafilter 90 ALU series housings? +
Yes. Our compatible replacement elements are manufactured to the same dimensional specification as the original Ultrafilter (Donaldson) 90 ALU cartridges. They are direct drop-in replacements — no housing modification required. If you have the Ultrafilter part number or size code, send it to us and we will cross-reference and confirm before you order.
What is the difference between Ultrafilter FF and MF grades? +
Both FF and MF are coalescing elements that remove oil mist and water aerosols, but at different efficiencies. FF (Fine Filter) removes particles and oil mist down to 1 µm — suitable for general industrial air. MF (Micro Filter) removes down to 0.1 µm with a maximum residual oil of 0.1 mg/m³ — required for painting, food processing and pharmaceutical applications.
How often should Ultrafilter elements be replaced? +
Ultrafilter / Donaldson recommends annual replacement — every 12 months or 4,000 operating hours, whichever is sooner. In Indian industrial environments (high humidity, dust), we recommend replacing every 8–12 months for critical-grade elements (SMF, AK). Watch the differential pressure indicator: a red reading means the element is saturated and must be replaced immediately.
What is the price of Ultrafilter replacement elements in India? +
Pricing depends on the element grade and size. Our compatible Ultrafilter replacement elements are 30–50% below OEM Donaldson pricing. Click "Enquire" next to your required size above, or WhatsApp us at +91-9810070303 with your size code and quantity for a same-day quote.
Is the SB grade available? +
The Ultrafilter SB (super-high-efficiency) grade is not currently stocked as a compatible replacement. If you require SB grade elements, contact us — we may be able to source or provide a suitable alternative from the Omega Air range that meets your air quality specification.
