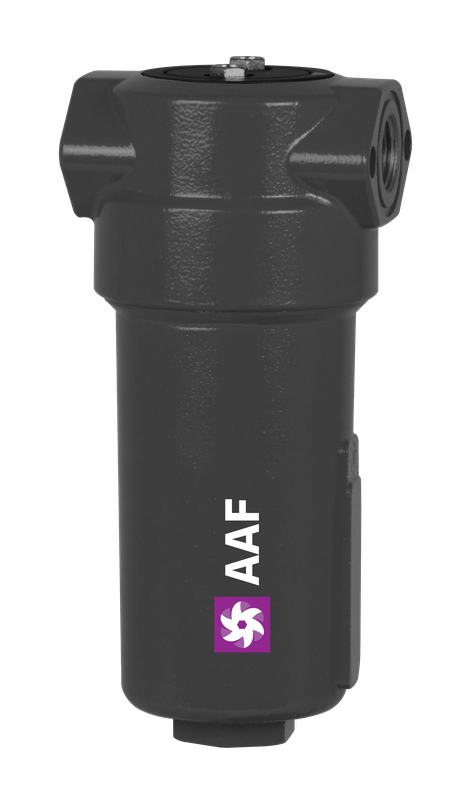

The Omega Air AAF Series is the industry-standard general purpose compressed air filter for screwed-connection installations. Covering the full range of filtration grades from 3 µm particulate to activated carbon, it protects downstream equipment and processes across virtually every compressed air application.
| Parameter | Specification | Notes |
|---|---|---|
| Series | AAF | General purpose line filter |
| Max Pressure | 16 bar (232 psi) | Standard compressed air systems |
| Flow Range | 10 – 2,760 Nm³/h | At 7 bar, 20°C reference conditions |
| Connection | BSP Screwed (G¼ – G3) | Full range of port sizes available |
| Filter Grades | P / R / M / S / ACS | All five grades available in this series |
| Filtration (Grade S) | 0.01 µm / 99.9999% | High-efficiency oil aerosol removal |
| Operating Temperature | +1°C to +60°C | Suitable for standard industrial environments |
| Bowl Material | Aluminium alloy | Anodised for corrosion resistance |
| Differential Pressure Indicator | Visual / Electronic (optional) | Signals element replacement time |
| Compliance Standard | ISO 8573-1 | Tested and certified |
The AAF Series supports all five Omega Air filter grades, allowing staged filtration trains to be built from a single proven product family.
Pneumatic tools, actuators, conveying systems and process equipment where clean, dry air is essential for reliable operation.
Oil-free and particle-free air for spray finishing. Typically P + M + ACS train to prevent surface contamination.
Direct contact applications requiring P + S + ACS filtration to meet food-grade compressed air standards.
Cleanroom and blister-pack environments requiring certified-grade air. P + S + ACS for ISO 8573-1 Class 1 compliance.
PCB handling, SMT assembly and semiconductor processes. R + M + S train for contamination-sensitive manufacturing.
Pre-treatment for PSA nitrogen generators to protect membranes and molecular sieves. P + M + S recommended.
Our engineers will help you select the correct size, grade and element combination for your flow rate and air quality requirements.
